Richpeace Computerized Cap/Tubular Embroidery Machine
RPCE-NM-TC-2-360×450-LB-F9-VR1-NA-1P220
RPCE-NM-TC-4-360×450-LB-F9-VR1-NA-1P220
RPCE-NM-TC-6-360×450-LB-F9-VR1-NA-1P220
RPCE-NM-TC-8-360×450-HB-F9-VR1-NA-1P220
RPCE-NM-TC-10-360×450-HB-F9-VR1-NA-1P220
RPCE-NM-TC-12-360×450-HB-F9-VR1-NA-1P220
Speed: Flat embroidery : 1000rpm Tubular embroidery : 1000rpm Cap embroidery : 850rpm
Voltage: Single phase 220V / 3 phase 380V
Product Introduction
Richpeace Cap / Tubular Embroidery Machine, low noise, stable operation, smooth and bright stitching. Integrated cap embroidery,readymade garment embroidery and flat embroidery in one machine, which can be freely converted. Suitable for embroidery on caps, RMG and cut pieces, multiple functions and high efficiency.

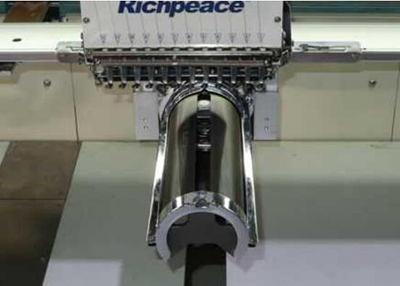

Tubular embroidery: embroidery requirements on T-shirts, sportswear or othertypes ofready-made garments.

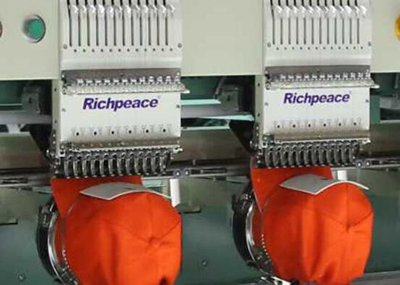

Cap embroidery：300° embroidery around cap.
Flat embroidery：Detachable fronttables can realize normal flat embroidery after installation.
Sock embroidery (optional)：For embroidery on finished socks.
Pants embroidery (optional)：Embroidery on sleeves and trouserlegs.
Specifications
| Model | RPCE-NM-TC-2-360×450-LB-F9-VR1-NA-1P220 RPCE-NM-TC-4-360×450-LB-F9-VR1-NA-1P220 RPCE-NM-TC-6-360×450-LB-F9-VR1-NA-1P220 RPCE-NM-TC-8-360×450-HB-F9-VR1-NA-1P220 RPCE-NM-TC-10-360×450-HB-F9-VR1-NA-1P220 RPCE-NM-TC-12-360×450-HB-F9-VR1-NA-1P220 |
| Size | Flat embroidery : 360×450mm Tubular embroidery : 290×290mm Cap embroidery : 300×60mm |
| Speed | Flat embroidery : 1000rpm Tubular embroidery : 1000rpm Cap embroidery : 850rpm |
| Power Supply | Single phase 220V / 3 phase 380V |
| Installation Area | 1760mm×1415mm×1650mm 2480mm×1415mm×1650mm 3200mm×1415mm×1650mm 4722mm×1700mm×1650mm 5442mm×1773mm×1650mm 6162mm×1773mm×1650mm |
